What is a Auto uncoiler/ decoiler?
If you look at the beginning of a roofing roll production line, you can see an evitable part of roll forming machine to hold and safely pay off the steel strip.
A decoiler, also call uncoiler, unwinds steel coil, which can be fed into continuously running machineries such as roll formers or automatic punches. Decoiler machine is suitable for all kinds of coil material feeding and the decoiler can work with straightener.
Cunmac, a decoiling machine manufacturer from Vietnam, proudly provides sheet metal auto uncoiler/ decoiler in domestic and international markets including Asia, Australia, Middle East, Africa, America.
Read more Decoiler machine – Everything A-Z about uncoiler/decoiler
MACHINE VIDEO
SPECIFICATIONS & EQUIPMENT
– Automatic operation roll forming machine by sensor
– Transmission by gear motor
– Expand and collapse by hydraulic cylinder
– Hydraulic decoiler machine with electrical and hydraulic components made from Japan, Germany
– Stable operation with strong power and body frame
– Customize design
Please note when choosing an uncoiler and decoiler, keep these specifications in mind:
- Thickness of material
- Weight of coil
| SPECIFICATION | |||
| Items | ECO model | STANDARD model | HIGH SPEED model |
| Total power | 5.5 – 15kw | ||
| Speed | 0 – 40m/min (can adjustable) | ||
| Dimension (LxWxH) | 2.2×1.2×1.2m | ||
| Weight of machine | 2.0 – 4.0 tons | ||
| Material thickness | 0.2 – 2.0mm (G300-G550) | ||
| Coil width | 450 – 1500mm | ||
| Load capacity | 5 – 10 tons | ||
| Transmission system | Gear motor | ||
| Expand & collapse system | Hydraulic | ||
| Control system | Automatic follow roll forming machine | ||
| EQUIPMENT | |
| Items | Brand |
| PLC (CPU) | SIEMENS (Germany) |
| Touch panel (HMI) | Schneider (Japan) |
| Electric motor | HITACHI/TOSHIBA (Japan) |
| Encoder, relay | OMRON (Japan) |
| Inverter | MITSUBISHI (Japan) |
| Hydraulic components | YUKEN (Japan) |
| Cutting blades | SKD11 (Japan) |
| Rollers | S45C, SKD11 (Japan) |
| Gear box | LIMING (Taiwan) |
ABOUT CUNMAC MACHINERY
Cunmac proudly provides Auto uncoiler/ decoiler in domestic and international markets including Asia, Australia, Middle East, Africa, America.
About Cunmac Machinery
Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:
- Roofing roll forming machine
- Caping_Nok roll forming machine
- Louver roll forming machine
- Pressing curve forming machine
- Floordeck roll forming machine
- Truss roll forming machine
- Channel roll forming machine
- Ceiling roll forming machine
- Slitter & cutter
- Leveling & cutting to length machine
- Bending machine
- Decoiler (uncoiler)
All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.
ABOUT CUNMAC
Our over 15 years of experience in manufacturing roll forming machines is a result of our high-quality awareness to operate in a continuously innovative process. This process is based on market needs and desires for innovation, automation, and quality.Our quality covers not only employees and suppliers but also production methods, products, and partners. All parts of products are fabricated from alloy steel by CNC precision machines. Electrical and hydraulic components derive from reputable brands such as Siemens, Schneider, OMRON, Hitachi, Yuken…

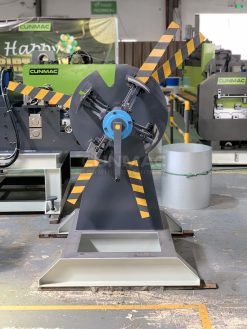

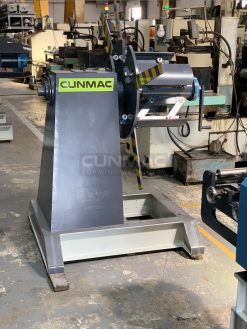

MACHINE IMAGES
