Tile capping roll forming machine (Ridge cap machine)



 Total power 5.5 – 15kw
 Speed 4 – 8m/min
 Dimension (LxWxH) (6-8)x(1.0-1.4)x1.4m
 Weight of machine 3.5 – 12 tons
 Roller station 10- 20
 Material thickness 0.25 – 0.5mm (G300-G450)
 Material width 300 – 457mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote

What is a Tile capping roll forming machine (Ridge cap machine)?

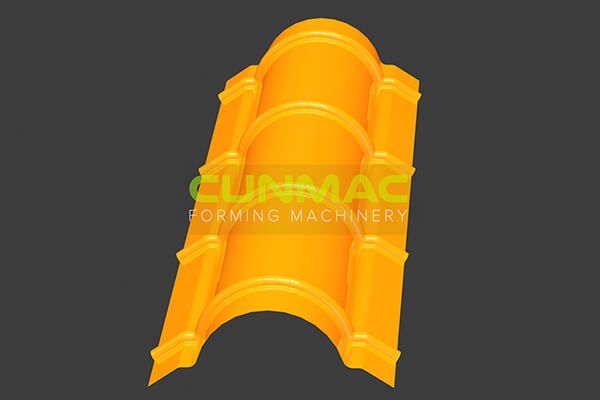

The ridge cap on a metal roof is the trim that runs along the apex of the roof. The peak or ridge is the point at the top of the roof where both slopes meet.

The most important stage in enclosing a steel structure roof system is installing ridge tops. Metal roof ridge caps go along the peak of the roof, connecting the two adjoining steel roof panels on either side of the roof seam. To make metal roofing ridge cap we use metal roof ridge cap roll forming machine.

MACHINE VIDEO

SPECIFICATIONS & EQUIPMENT

– Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel

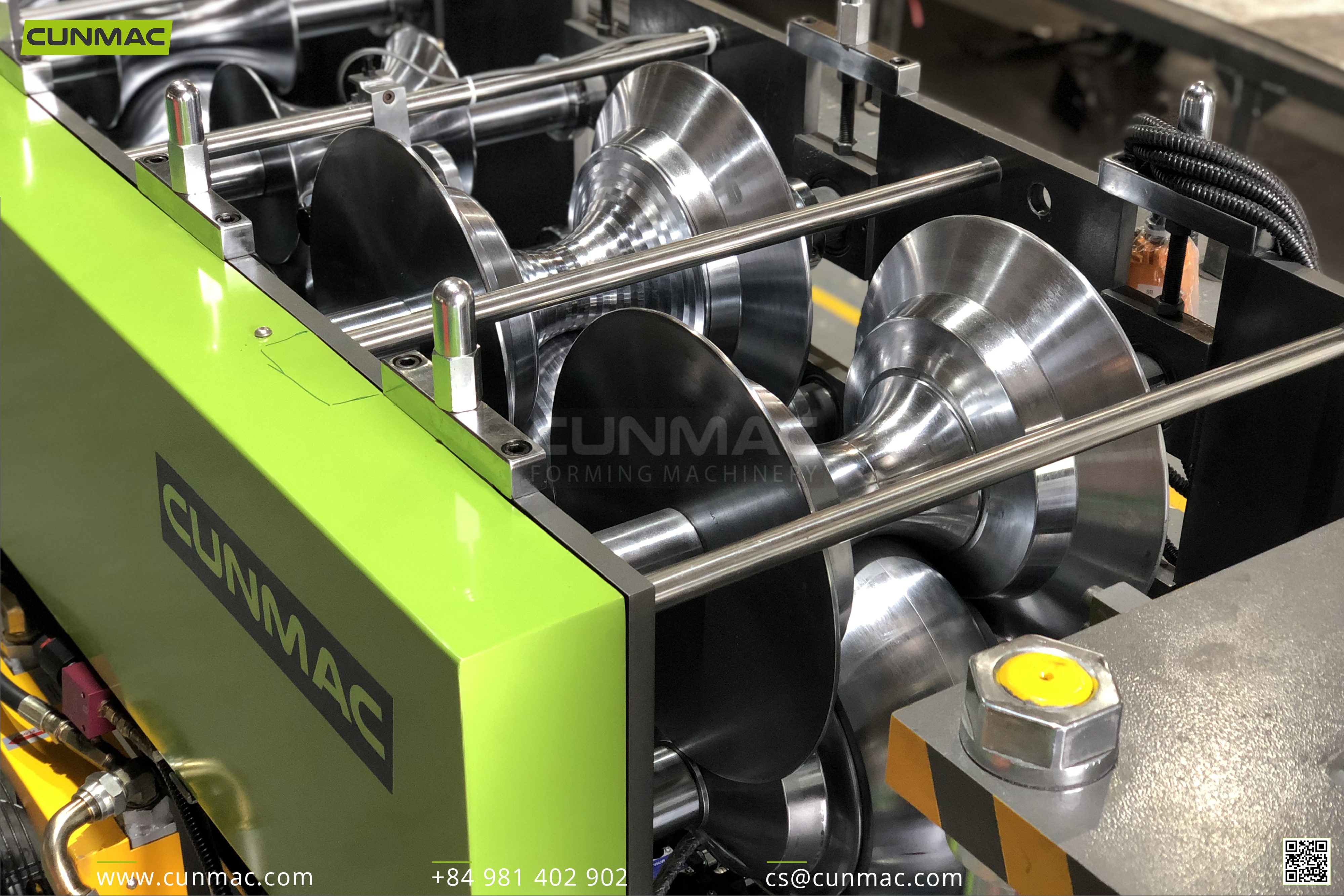

– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Customize design
– Stable operation with strong power and body frame

SPECIFICATION
 Items ECO model STANDARD model HIGH SPEED model
 Total power 5.5 – 7.5kw 11 – 15kw
 Speed 4 – 6m/min 6 – 8m/min
 Dimension (LxWxH) (6-8)x(1.0-1.4)x1.4m (6-8)x(1.0-1.4)x1.4m
 Weight of machine 3.5 – 5 tons 9 – 12 tons
 Roller station 10 – 16 12 – 20
 Material thickness 0.25 – 0.5mm (G300-G450) 0.25 – 0.5mm (G300-G450)
 Material width 300; 304; 400; 457mm 300; 304; 400; 457mm
 Transmission system Hydraulic motor Servo motor with gear box
 Cutting system Hydraulic cylinder (front cutting) Hydraulic cylinder (front cutting)
 Control system Automatic with PLC, HMI Automatic with PLC, HMI
EQUIPMENT
  Items Brand
 PLC (CPU) SIEMENS (Germany)
 Touch panel (HMI) Schneider (Japan)
 Electric motor HITACHI/TOSHIBA (Japan)
 Encoder, relay OMRON (Japan)
 Inverter MITSUBISHI (Japan)
 Hydraulic components YUKEN (Japan)
 Cutting blades SKD11 (Japan)
 Rollers S45C, SKD11 (Japan)
 Gear box LIMING (Taiwan)

ABOUT CUNMAC MACHINERY

Cunmac proudly provides Tile capping roll forming machine (Ridge cap machine) in domestic and international markets including Asia, Australia, Middle East, Africa, America.

About Cunmac Machinery

Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:

All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.

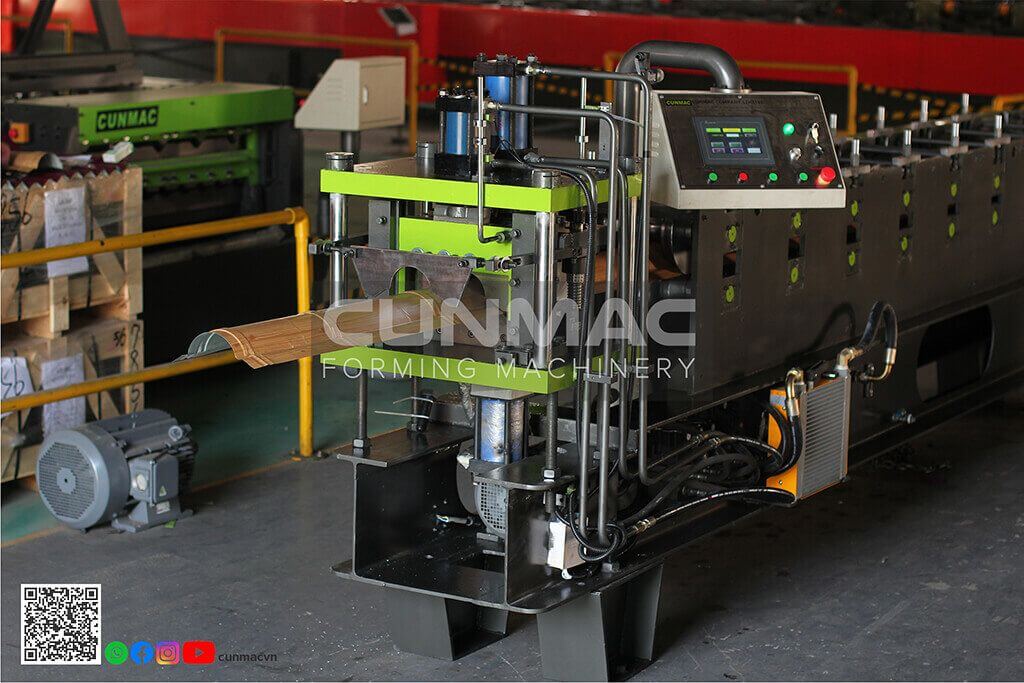

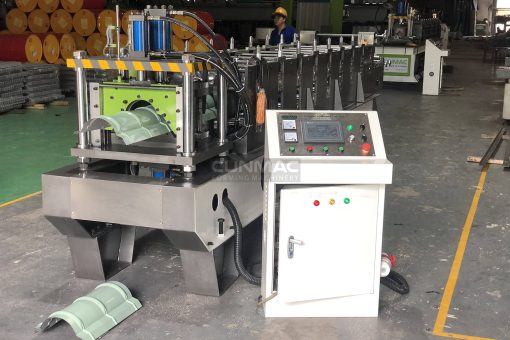

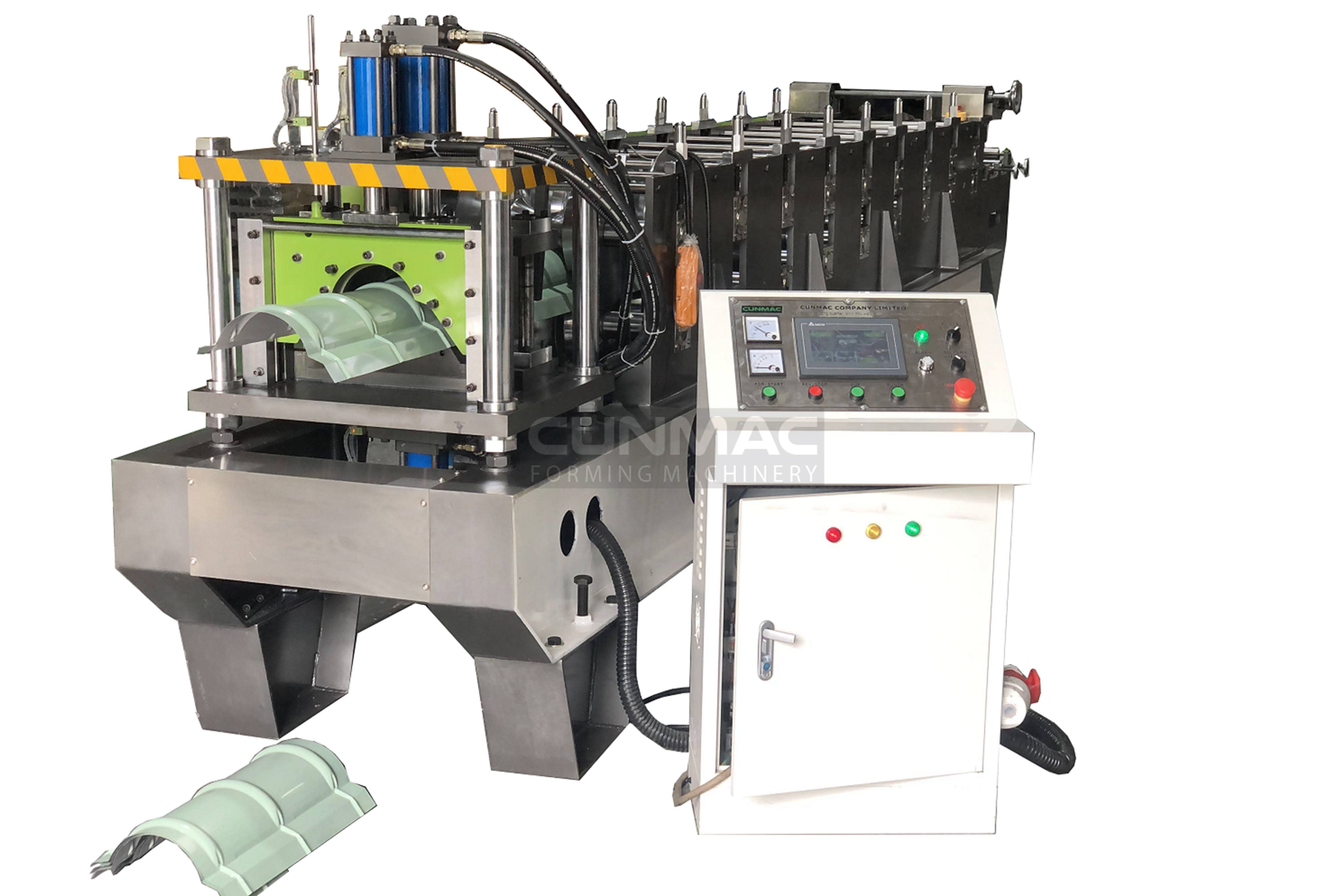

MACHINE IMAGES
