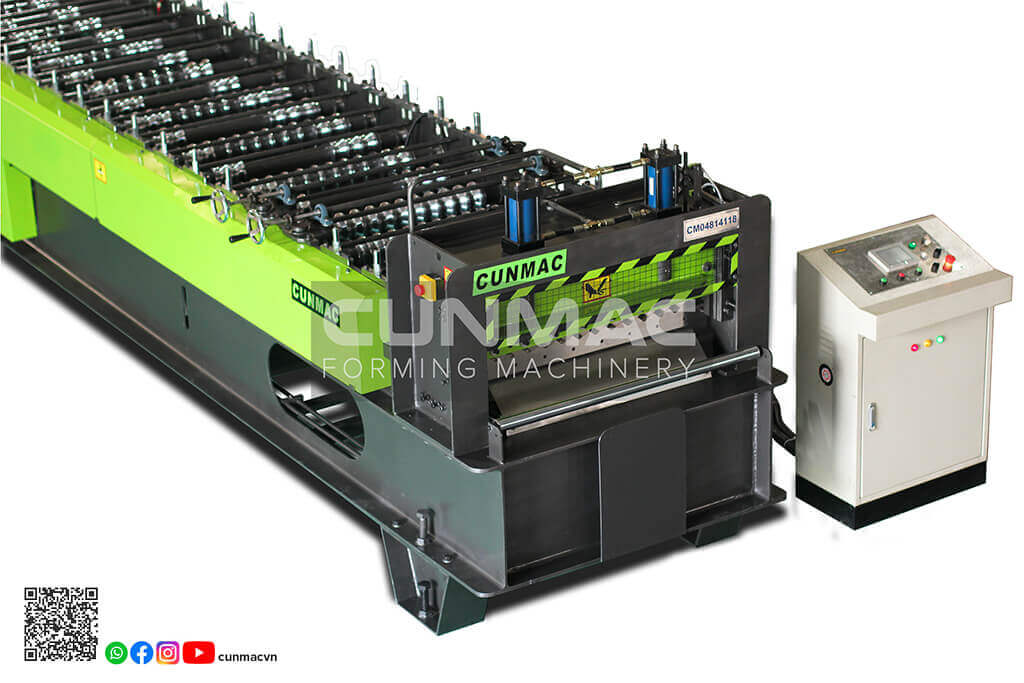

Corrugated roofing roll forming machine

 Total power 5 – 22kw
 Speed 16 – 46m/min
 Dimension (LxWxH) (9-11)x(1.6-2.2)x1.8m
 Weight of machine 9 – 14 tons
 Roller station 22 – 36
 Material thickness 0.15 – 0.6mm (G300-G550)
 Material width 914;1200;1219;1450mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote

Description

Cunmac proudly introduces the usage and application of corrugated metal roofing and corrugated roofing roll forming machines for companies operating in sheet metal, construction, manufacturing industries.

1. What is a corrugated roofing sheet?

corrugated metal roof panels , corrugated metal roofing sheets

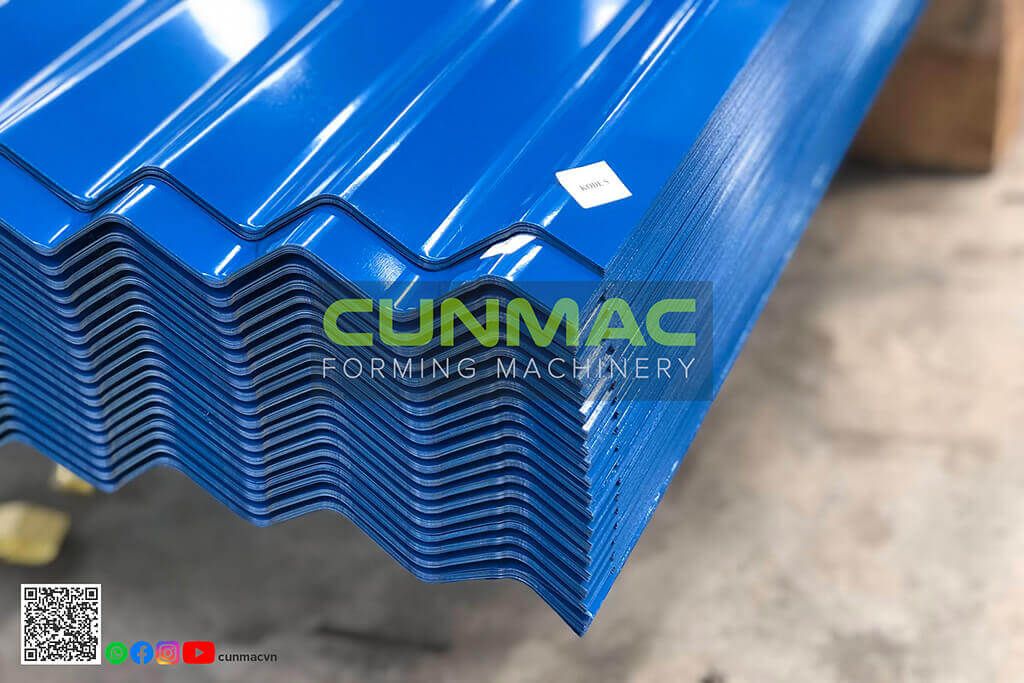

Corrugated metal roof panels

Corrugated metal roofing sheets are commonly used for roofing in a wide range of applications including roofing, wall cladding, fences, and screens.

  • Household constructions such as houses, kiosks, shops, restaurants, etc,…;
  • Industrial workshops such as warehouses, factories, offices, …;
  • Public buildings such as hospitals, clinics, schools, commissars, departments, theater or amusement parks.

The corrugated metal sheet is designed into rolls, 1200mm flat, is put into the corrugated roll forming machine

Read more: Why corrugated metal roll roofing machine is best-seller?

2. Outstanding advantages of corrugated metal roofing

– After rolling, the useful gauge when roofing with 1 wave is 1000mm, making it easy to calculate the number of sheets and the length.

– The circular wave design helps the corrugated iron cross section in contact with rainwater is low, so it reduces noise perfectly, and is well insulated.

– Zinc, cold and colored corrugated iron are all rolled round corrugated iron

– The average thickness of corrugated iron from 0.30mm (3 dem) to 0.50mm (5 dem) helps people have many choices for many different uses.

– Specification, cutting length as required

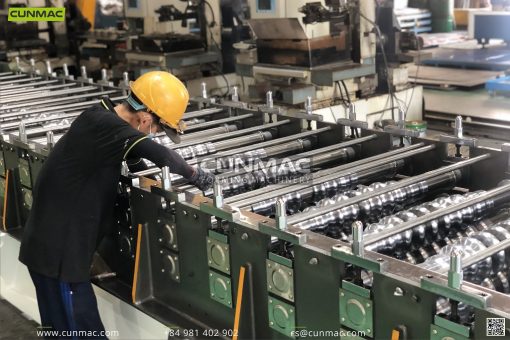

3. Cunmac corrugated metal roofing roll forming machine

Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel

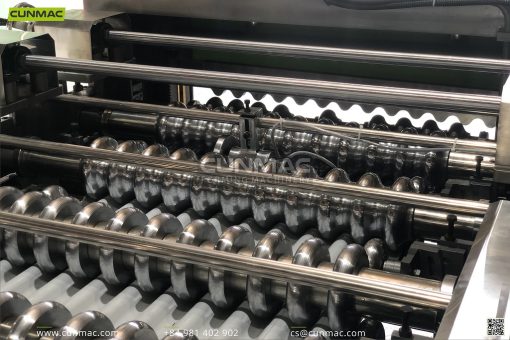

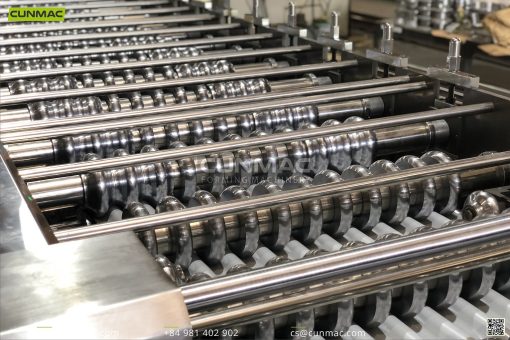

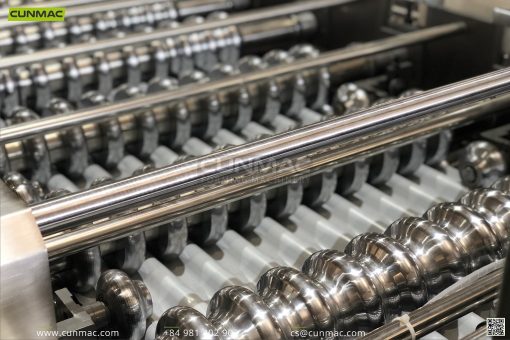

– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Stable operation with strong power and body frame
– 2 encoders for rear and front cutting

– Customize design

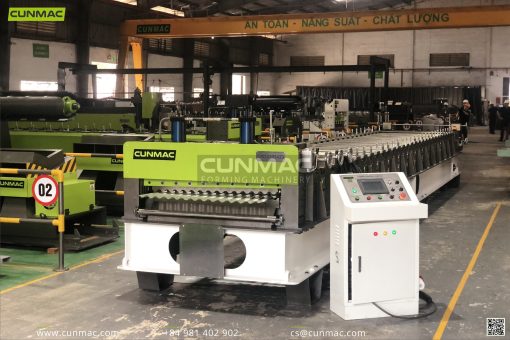

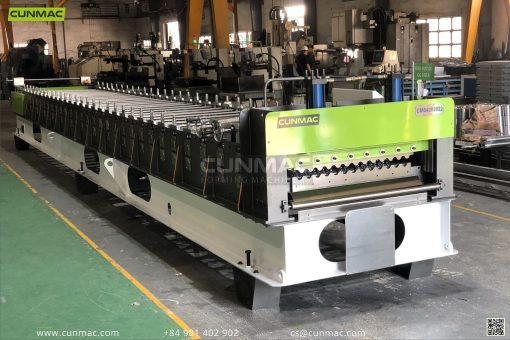

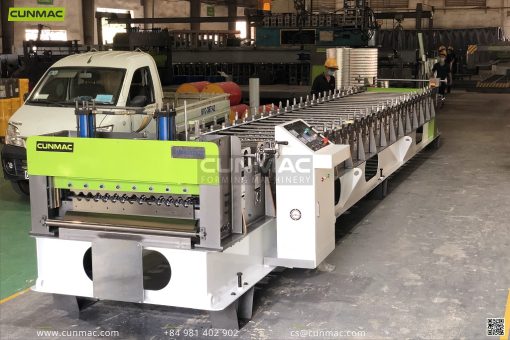

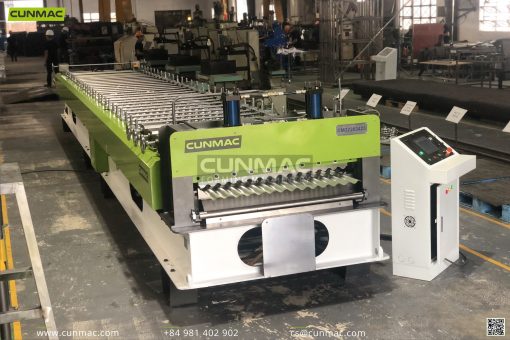

Corrugated roofing machine

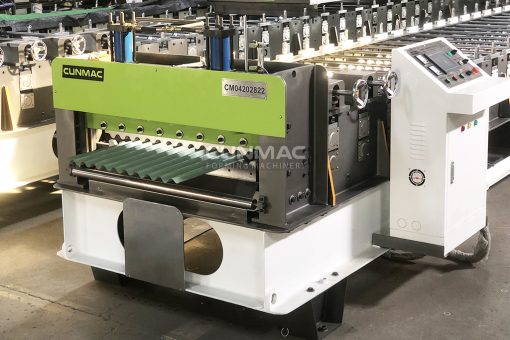

Corrugated machine

Video demo:

SPECIFICATION
 Items ECO model STANDARD model HIGH SPEED model
 Total power 5.5 – 7.5kw 7.5 – 11kw 11 – 22kw
 Speed 16 – 18m/min 22 – 24m/min 44 – 46m/min
 Dimension (LxWxH) (9-11)x(1.6-2.2)x1.8m (10-12)x(1.6-2.2)x1.8m (11-14)x(1.6-2.2)x1.8m
 Weight of machine 9 – 11 tons 9 – 12 tons 10 – 14 tons
 Roller station 22 – 26 26 – 30 30 – 36
 Material thickness 0.15 – 0.6mm (G300-G550) 0.15 – 0.6mm (G300-G550) 0.15 – 0.6mm (G300-G550)
 Material width 914; 1200; 1219; 1450mm 914; 1200; 1219; 1450mm 914; 1200; 1219; 1450mm
 Transmission system Hydraulic motor Hydraulic motor Electric motor with gear box
 Cutting system Hydraulic cylinder (front cutting) Hydraulic cylinder (rear & front cutting) Electric motor with gear box (rear & front cutting)
 Control system Automatic with PLC, HMI Automatic with PLC, HMI, Inverter Automatic with PLC, HMI, Inverter





EQUIPMENT
  Items Brand
 PLC (CPU) SIEMENS (Germany)
 Touch panel (HMI) Schneider (Japan)
 Electric motor HITACHI/TOSHIBA (Japan)
 Encoder, relay OMRON (Japan)
 Inverter MITSUBISHI (Japan)
 Hydraulic components YUKEN (Japan)
 Cutting blades SKD11 (Japan)
 Rollers S45C, SKD11 (Japan)
 Gear box LIMING (Taiwan)



Cunmac, a leading roll forming machine manufacturer, proudly provides sheet metal corrugated roofing roll forming machines in domestic and international markets including Asia, Australia, Middle East, Africa, America.
