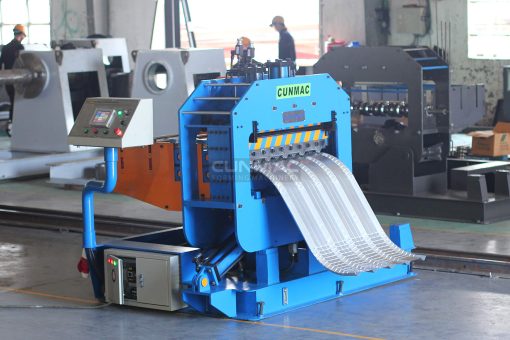

Double pressing curve forming machine

 Total power 3.7 – 7.5kw
 Speed 20 – 54m/min
 Dimension (LxWxH) 1.3×2.3×1.7m
 Weight of machine 1.7 – 2.0 tons
 Operation option Vertical & horizontal (manual/ cylinder)
 Material thickness 0.15 – 0.5mm (G300-G550)
 Material width 914 – 1219mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote

A pressing curve forming machine is used to press trimdek/spandek/4 angles/waves/ribs type/trapezoidal curved into an arch, for roofing in the eaves.

There are 3 types including:

Cunmac double pressing curve forming machine

– Automatic punching with PLC, HMI
– Automatic programmable radius & step setting via the touch panel
– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Stable operation with strong power and body frame

– Customize design

Pressing curve forming machine

SPECIFICATION
 Items ECO model STANDARD model HIGH SPEED model
 Total power 3.7 – 5.5kw 5.5 – 7.5kw 5.5 – 7.5kw
 Speed 20 – 24 step/min 40 – 44 step/min 50 – 54 step/min
 Dimension (LxWxH) 1.3×2.3×1.7m 1.3×2.3×1.7m 1.3×2.3×1.7m
 Weight of machine 1.7 – 2.0 tons 1.7 – 2.0 tons 1.7 – 2.0 tons
Operation option Vertical & horizontal (manual) Vertical & horizontal (cylinder) Vertical & horizontal (cylinder)
 Material thickness 0.15 – 0.5mm (G300-G550) 0.15 – 0.5mm (G300-G550) 0.15 – 0.5mm (G300-G550)
 Material width 914; 940; 1200; 1219mm 914; 940; 1200; 1219mm 914; 940; 1200; 1219mm
 Transmission system Hydraulic motor Gear motor Servo motor
 Pressing die concave & convex concave & convex concave & convex
 Control system Automatic with PLC, HMI Automatic with PLC, HMI, inverter Automatic with PLC, HMI, servo



EQUIPMENT
 Items Brand
 PLC (CPU) SIEMENS (Germany)
 Touch panel (HMI) Schneider (Japan)
 Electric motor HITACHI/TOSHIBA (Japan)
 Encoder, relay OMRON (Japan)
 Inverter MITSUBISHI (Japan)
 Hydraulic components YUKEN (Japan)
 Cutting blades SKD11 (Japan)
 Rollers S45C, SKD11 (Japan)
 Gear box LIMING (Taiwan)

Cunmac proudly provides double pressing curve forming machine in domestic and international market including Asia, Australia, Middle East, Africa, America.

About Cunmac Machinery

Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:

All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.
