A pressing curve forming machine is used to press trimdek/spandek/4 angles/waves/ribs type/trapezoidal curved into an arch, for roofing in the eaves.
There are 3 types including:
- Standard pressing curve forming machine
- Double pressing curve forming machine (concave & convex)
- Combine pressing & cutting curve forming machine

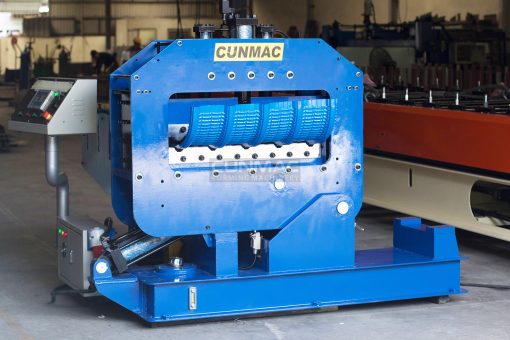

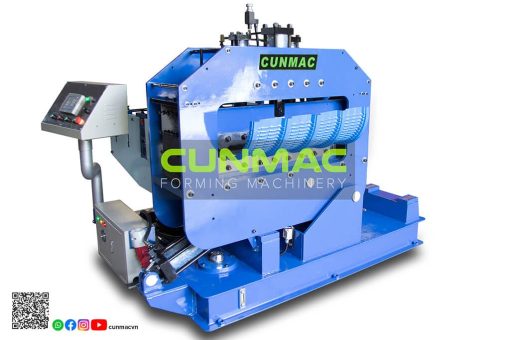

Cunmac combine pressing & cutting curve forming machine
– Automatic punching and cutting with PLC, HMI
– Automatic programmable length, radius & step setting via the touch panel
– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Stable operation with strong power and body frame
– Customize design
How combine pressing & cutting curve forming machine works
SPECIFICATION | |||
Items | ECO model | STANDARD model | HIGH SPEED model |
Total power | 3.7 – 5.5kw | 5.5 – 7.5kw | 5.5 – 7.5kw |
Speed | 20 – 24 step/min | 40 – 44 step/min | 50 – 54 step/min |
Dimension (LxWxH) | 1.3×2.3×1.7m | 1.3×2.3×1.7m | 1.3×2.3×1.7m |
Weight of machine | 1.7 – 2.0 tons | 1.7 – 2.0 tons | 1.7 – 2.0 tons |
Operation option | Vertical & horizontal (manual) | Vertical & horizontal (cylinder) | Vertical & horizontal (cylinder) |
Material thickness | 0.15 – 0.5mm (G300-G550) | 0.15 – 0.5mm (G300-G550) | 0.15 – 0.5mm (G300-G550) |
Material width | 914; 940; 1200; 1219mm | 914; 940; 1200; 1219mm | 914; 940; 1200; 1219mm |
Transmission system | Hydraulic motor | Gear motor | Servo motor |
Punching & cutting system | Hydraulic | Hydraulic | Hydraulic |
Control system | Automatic with PLC, HMI | Automatic with PLC, HMI, inverter | Automatic with PLC, HMI, servo |
EQUIPMENT | |
Items | Brand |
PLC (CPU) | SIEMENS (Germany) |
Touch panel (HMI) | Schneider (Japan) |
Electric motor | HITACHI/TOSHIBA (Japan) |
Encoder, relay | OMRON (Japan) |
Inverter | MITSUBISHI (Japan) |
Hydraulic components | YUKEN (Japan) |
Cutting blades | SKD11 (Japan) |
Rollers | S45C, SKD11 (Japan) |
Gear box | LIMING (Taiwan) |
Cunmac proudly provides combine pressing & cutting curve forming machine in domestic and international market including Asia, Australia, Middle East, Africa, America.
