Auto uncoiler with coil car

 Total power5.5 – 15kw
 Speed0 – 40m/min (adjustable)
 Dimension (LxWxH)2.2×1.2×1.2m
 Weight of machine2.0 – 4.0 tons
 Material thickness0.2 – 2.0mm (G300-G550)
 Material width450 – 1500mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote





    Cunmac proudly provides auto uncoiler with coil car in domestic and international markets including Asia, Australia, Middle East, Africa, America.

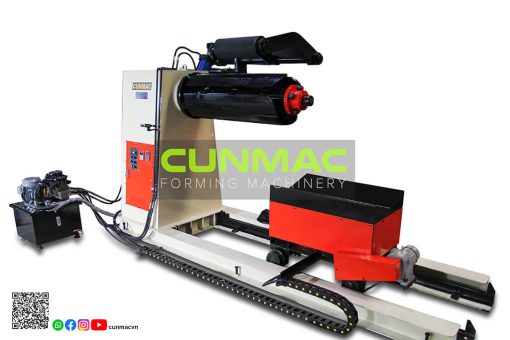

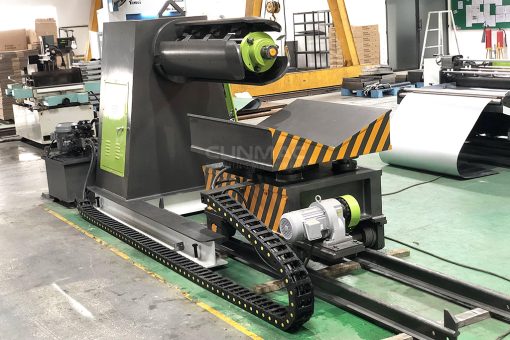

    Cunmac auto uncoiler with coil car

    – Automatic operation foll roll forming machine by sensor
    – Transmission by gear motor
    – Expand and collapse by hydraulic cylinder
    – Coil car up and down by hydraulic cylinder, transmission by gear motor
    – Electrical and hydraulic components made from Japan, Germany
    – Stable operation with strong power and body frame

    – Customize design





    SPECIFICATION
     ItemsECO modelSTANDARD modelHIGH SPEED model
     Total power5.5 – 15kw
     Speed0 – 40m/min (can adjustable)
     Dimension (LxWxH)2.2×1.2×1.2m
     Weight of machine2.0 – 4.0 tons
     Material thickness0.2 – 2.0mm (G300-G550)
     Coil width450 – 1500mm
     Load capacity5 – 10 tons
    Transmission systemGear motor
    Expand & collapse systemHydraulic
     Control systemAutomatic follow roll forming machine
    Coil carload capacity 5 tons. Up & down by hydraulic cylinder. Transmission by gear motor



    EQUIPMENT
      ItemsBrand
     PLC (CPU)SIEMENS (Germany)
     Touch panel (HMI)Schneider (Japan)
     Electric motorHITACHI/TOSHIBA (Japan)
     Encoder, relayOMRON (Japan)
     InverterMITSUBISHI (Japan)
     Hydraulic componentsYUKEN (Japan)
     Cutting bladesSKD11 (Japan)
     RollersS45C, SKD11 (Japan)
     Gear boxLIMING (Taiwan)

    Please note when choosing an uncoiler and decoiler, keep these specifications in mind:

    • Thickness of material
    • Weight of coil

    Read more  Auto uncoiler/ decoiler
