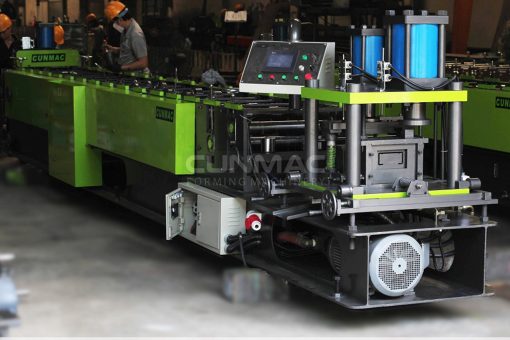

C-shape purlin roll forming machine

 Total power11 – 18kw
 Speed16 – 18m/min
 Dimension (LxWxH)(8-11)x(1.2-2.1.6)x1.6m
 Weight of machine6 – 9 tons
 Roller station14 – 20
 Material thickness1.0 – 3.0mm (G300-G550)
 Material width150 – 450mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote





    1. What is C purlin?

    C Purlin, C-shaped
    C Purlin, C-shaped
    C purlins or Cee purlins is a purlin with a C-shaped cross-section, horizontal beams that are designed to form the roof and wall joists of a building shell structure.
    They sit between the roofing sheets and the building, acting as a support for the sheet to ensure it is firmly attached and safely in place.
    The advantage of C-shaped purlin is light-weight, easy to install and transport
    What is C purlin used for? They are commonly used in designs of roofs, trusses, factories, civil houses, etc.

    2. What is C shape purlin roll forming machine?

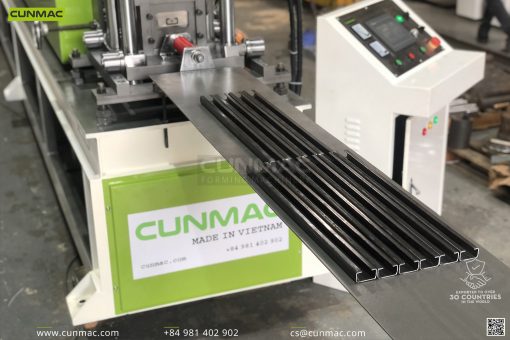

    C purlin roll forming machine is an equipment that produces C shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.

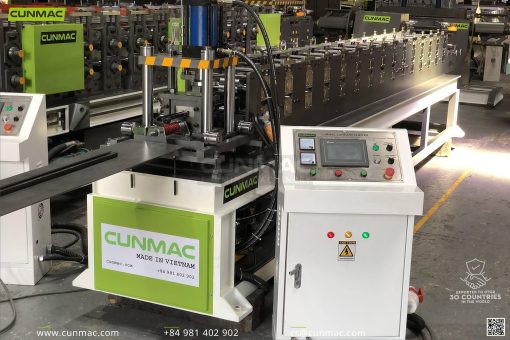

    This machine is fully automatic and easy to operate with a friendly HMI panel. It consists of one decoiler, sheet guiding equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.

    Their main advantages are beautifully customized designs, easy and stable operation with strong body frame.

    Purlin roll forming machine

    3. Cunmac C shape purlin roll forming machine

    – Automatic roll forming and cutting with PLC, HMI
    – Automatic programmable length settings via the touch panel
    – Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
    – Electrical and hydraulic components made from Japan, Germany
    – Save history for orders in 30 days
    – Stable operation with strong power and body frame- Stable operation with strong power and body frame.

    – Customize design

    Read more Z shape purlin forming machine

    SPECIFICATION
     ItemsECO modelSTANDARD modelHIGH SPEED model
     Total power11 – 18kw
     Speed16 – 18m/min
     Dimension (LxWxH)(8-11)x(1.2-1.6)x1.6m
     Weight of machine6 – 9 tons
     Roller station14 – 20
     Material thickness1.0 – 3.0mm (G300-G550)
     Material width150 – 450mm
     Transmission systemHydraulic motor

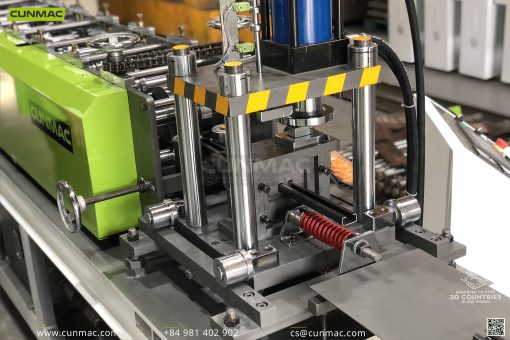

     Cutting systemHydraulic cylinder (rear & front cutting)
     Punching systemHydraulic
     Changing sizeManual with spacers
     Control systemAutomatic with PLC, HMI
    EQUIPMENT
      ItemsBrand
     PLC (CPU)SIEMENS (Germany)
     Touch panel (HMI)Schneider (Japan)
     Electric motorHITACHI/TOSHIBA (Japan)
     Encoder, relayOMRON (Japan)
     InverterMITSUBISHI (Japan)
     Hydraulic componentsYUKEN (Japan)
     Cutting bladesSKD11 (Japan)
     RollersS45C, SKD11 (Japan)
     Gear boxLIMING (Taiwan)

    Cunmac proudly provides C purlin roll forming machine in domestic and international markets including Asia, Australia, Middle East, Africa, America.

    Explore more: Cunmac – Z purlin roll forming machine

    About Cunmac Machinery

    Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:

    All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.
