U shape roll forming machine

 Total power 11 – 18kw
 Speed 16 – 18m/min
 Dimension (LxWxH) (8-11)x(1.2-1.6)x1.6m
 Weight of machine 6 – 9 tons
 Roller station  14 – 20
 Material thickness 1.0 – 3.0mm (G300-G550)
 Material width 150 – 450mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote

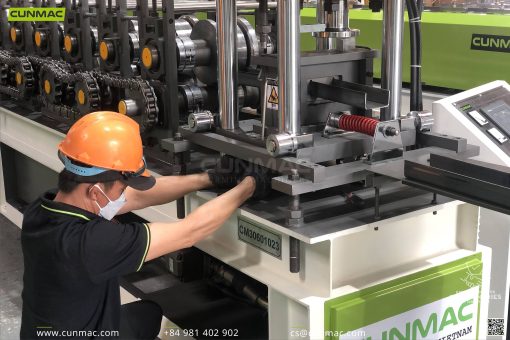

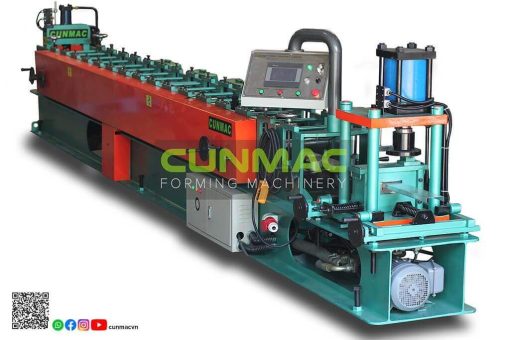

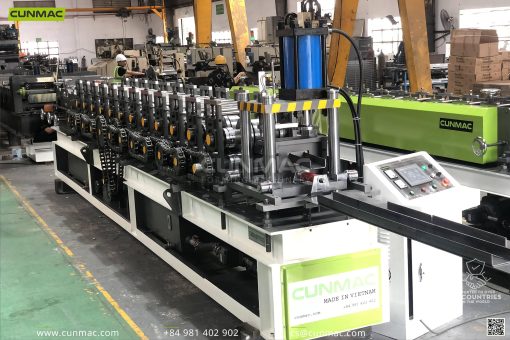

Cunmac U shape roll forming machine

– Automatic roll forming and cutting with PLC, HMI
– Automatic programmable length settings via the touch panel
– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Stable operation with strong power and body frame

– Customize design

Channel roll forming machine



SPECIFICATION
 Items ECO model STANDARD model HIGH SPEED model
 Total power 11 – 18kw
 Speed 16 – 18m/min
 Dimension (LxWxH) (8-11)x(1.2-1.6)x1.6m
 Weight of machine 6 – 9 tons
 Roller station 14 – 20
 Material thickness 1.0 – 3.0mm (G300-G550)
 Material width 150 – 450mm
 Transmission system Hydraulic motor

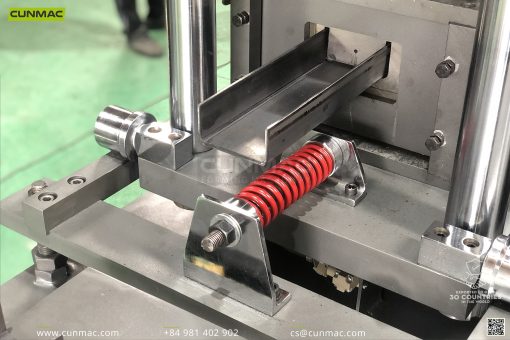

 Cutting system Hydraulic cylinder (rear & front cutting)
 Punching system Hydraulic
 Changing size Manual with spacers

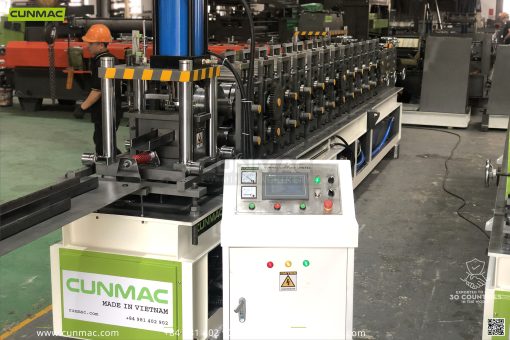

 Control system Automatic with PLC, HMI



EQUIPMENT
  Items Brand
 PLC (CPU) SIEMENS (Germany)
 Touch panel (HMI) Schneider (Japan)
 Electric motor HITACHI/TOSHIBA (Japan)
 Encoder, relay OMRON (Japan)
 Inverter MITSUBISHI (Japan)
 Hydraulic components YUKEN (Japan)
 Cutting blades SKD11 (Japan)
 Rollers S45C, SKD11 (Japan)
 Gear box LIMING (Taiwan)

Cunmac proudly provides U shape roll forming machine in domestic and international markets including Asia, Australia, Middle East, Africa, America.

About Cunmac Machinery

Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:

All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.
