Z shape purlin forming machine

0.00 out of 5 based on 1 customer rating

 Total power 11 – 18kw
 Speed 16 – 18m/min
 Dimension (LxWxH) (8-11)x(1.2-1.6)x1.6m
 Weight of machine 6 – 9 tons
 Roller station 14 – 20
 Material thickness 1.3 – 3.0mm (G300-G550)
 Material width 150 – 450mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote

1. What is Z purlin?

Z purlins or zed purlins is a purlin with a Z-shaped cross-section, horizontal beams that are designed to form the roof and wall joists of a building shell structure.
They sit between the roofing sheets and the building, acting as a support for the sheet to ensure it is firmly attached and safely in place.

z purlin machine

What is Z purlin used for?
The strong point of Z-purlin is the ability to overlap to create a stable bond under higher loads than C-shaped purlins. As a result, they are often used more often in designs of roofs, trusses, factories, civil houses, etc.

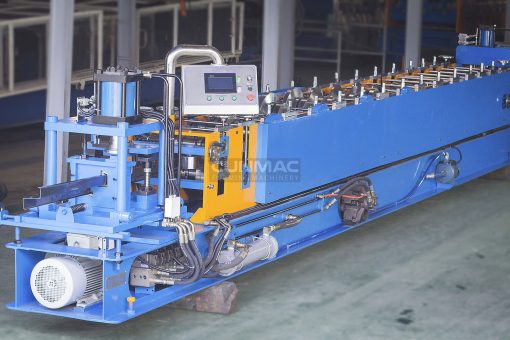

2. What is Z shape purlin roll forming machine?

The Z shape purlin roll forming machine can create a variety of profiles Z shape purlin by adjusting the rollers.

This machine is fully automatic and easy to operate with a friendly HMI panel. It consists of one decoiler, sheet guiding equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.

Their main advantages are beautifully customized designs, easy and stable operation with strong body frame.

purlin roll forming machine

Read more C-shape purlin roll forming machine

3. Cunmac Z shape purlin roll forming machine

– Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel
– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Customize design
– Stable operation with strong power and body frame

SPECIFICATION
 Items ECO model STANDARD model HIGH SPEED model
 Total power 11 – 18kw
 Speed 16 – 18m/min
 Dimension (LxWxH) (8-11)x(1.2-1.6)x1.6m
 Weight of machine 6 – 9 tons
 Roller station 14 – 20
 Material thickness 1.0 – 3.0mm (G300-G550)
 Material width 150 – 450mm
 Transmission system Hydraulic motor
 Cutting system Hydraulic cylinder (rear & front cutting)
 Punching system Hydraulic
 Changing size Manual with spacers
 Control system Automatic with PLC, HMI





EQUIPMENT
  Items Brand
 PLC (CPU) SIEMENS (Germany)
 Touch panel (HMI) Schneider (Japan)
 Electric motor HITACHI/TOSHIBA (Japan)
 Encoder, relay OMRON (Japan)
 Inverter MITSUBISHI (Japan)
 Hydraulic components YUKEN (Japan)
 Cutting blades SKD11 (Japan)
 Rollers S45C, SKD11 (Japan)
 Gear box LIMING (Taiwan)

Cunmac proudly provides Z shape purlin roll forming machine in domestic and international market including Asia, Australia, Middle East, Africa, America.

About Cunmac Machinery

Cunmac, a roll forming machine manufacturer, offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:

All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.
