Hollow roll forming machine

 Total power 3.5 – 11kw
 Speed 12 – 60m/min
 Dimension (LxWxH) (6-8)x(1.0-1.2)x1.4m
 Weight of machine 2.5 – 6 tons
 Roller station 14-22
 Material thickness 0.17 – 0.35mm (G300-G550)
 Material width 100 – 150mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote

SPECIFICATIONS & EQUIPMENT

– Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel
– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Customize design
– Stable operation with strong power and body frame

SPECIFICATION
 Items ECO model STANDARD model HIGH SPEED model
 Total power 3.5 – 5.5kw 5.5 – 7.5kw 7.5 – 11kw
 Speed 12 – 18m/min 24 – 30m/min 54 – 60m/min
 Dimension (LxWxH) (6-8)x(1.0-1.2)x1.4m (6-8)x(1.0-1.2)x1.4m (6-8)x(1.0-1.2)x1.4m
 Weight of machine 2.5 – 4 tons 3 – 6 tons 3 – 6 tons
 Roller station 14 – 16 14 – 18 16 – 22
 Material thickness 0.17 – 0.35mm (G300-G550) 0.17 – 0.35mm (G300-G550) 0.17 – 0.35mm (G300-G550)
 Material width 100 – 150mm 100 – 150mm 100 – 150mm
 Transmission system Hydraulic motor Hydraulic motor Gear motor
 Cutting system Hydraulic cylinder (front cutting) Hydraulic cylinder (front cutting) Hydraulic cylinder (front cutting)
 Control system Automatic with sensor Automatic with PLC, HMI Automatic with PLC, HMI, Inverter
EQUIPMENT
  Items Brand
 PLC (CPU) SIEMENS (Germany)
 Touch panel (HMI) Schneider (Japan)
 Electric motor HITACHI/TOSHIBA (Japan)
 Encoder, relay OMRON (Japan)
 Inverter MITSUBISHI (Japan)
 Hydraulic components YUKEN (Japan)
 Cutting blades SKD11 (Japan)
 Rollers S45C, SKD11 (Japan)
 Gear box LIMING (Taiwan)

MACHINE VIDEO

ABOUT CUNMAC MACHINERY

Cunmac proudly provides Hollow roll forming machine in domestic and international markets including Asia, Australia, Middle East, Africa, America.

About Cunmac Machinery

Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:

All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.

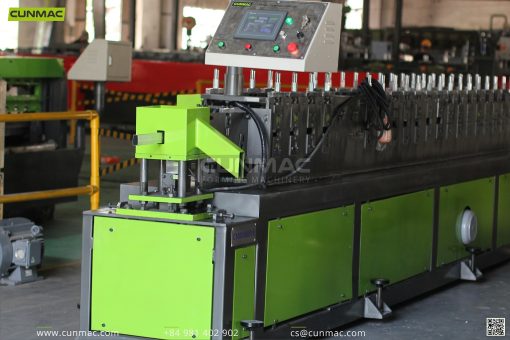

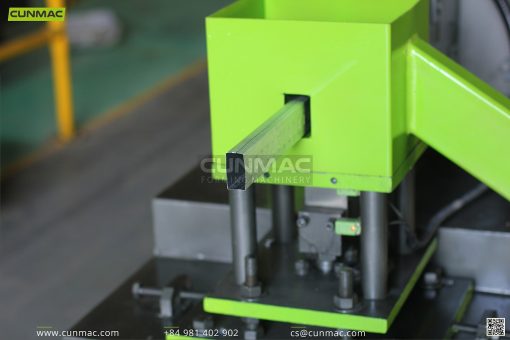

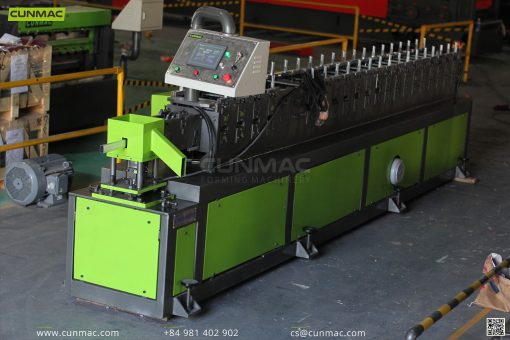

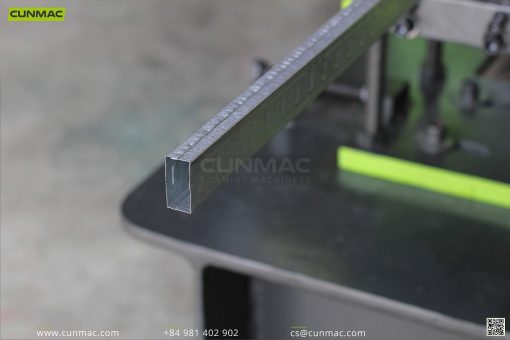

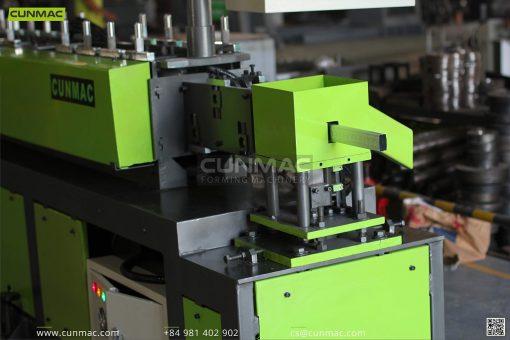

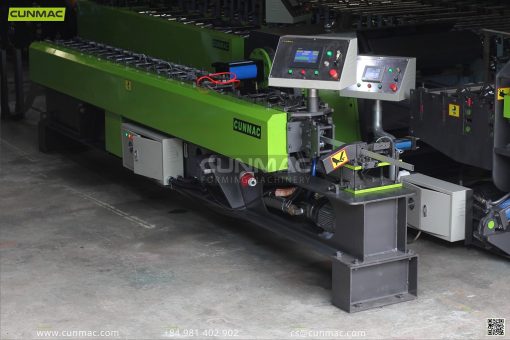

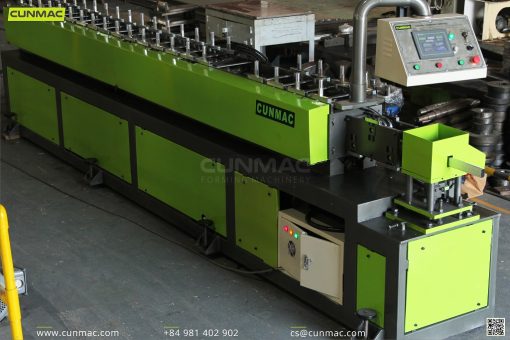

MACHINE IMAGES
