Classic tile roofing roll forming machine

Classic Tile Profile

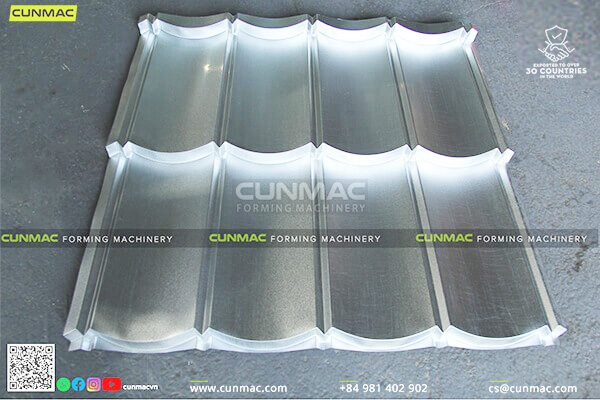

The classic tile profile machine produces metal tiles that replicate traditional clay tile appearance with elegantly curved waves and deep embossing. Each tile features precise step heights, consistent wave spacing, and reinforced edges for strength. The metal roof tile machine output is both visually appealing and functionally superior, offering excellent durability, corrosion resistance, long term color retention, and lightweight construction that reduces roof load and facilitates faster installation.

Additionally, the Classic tile roofing machine allows customization of tile length, thickness, and color, meeting diverse architectural and regional design requirements.

Machine Configuration / Profile

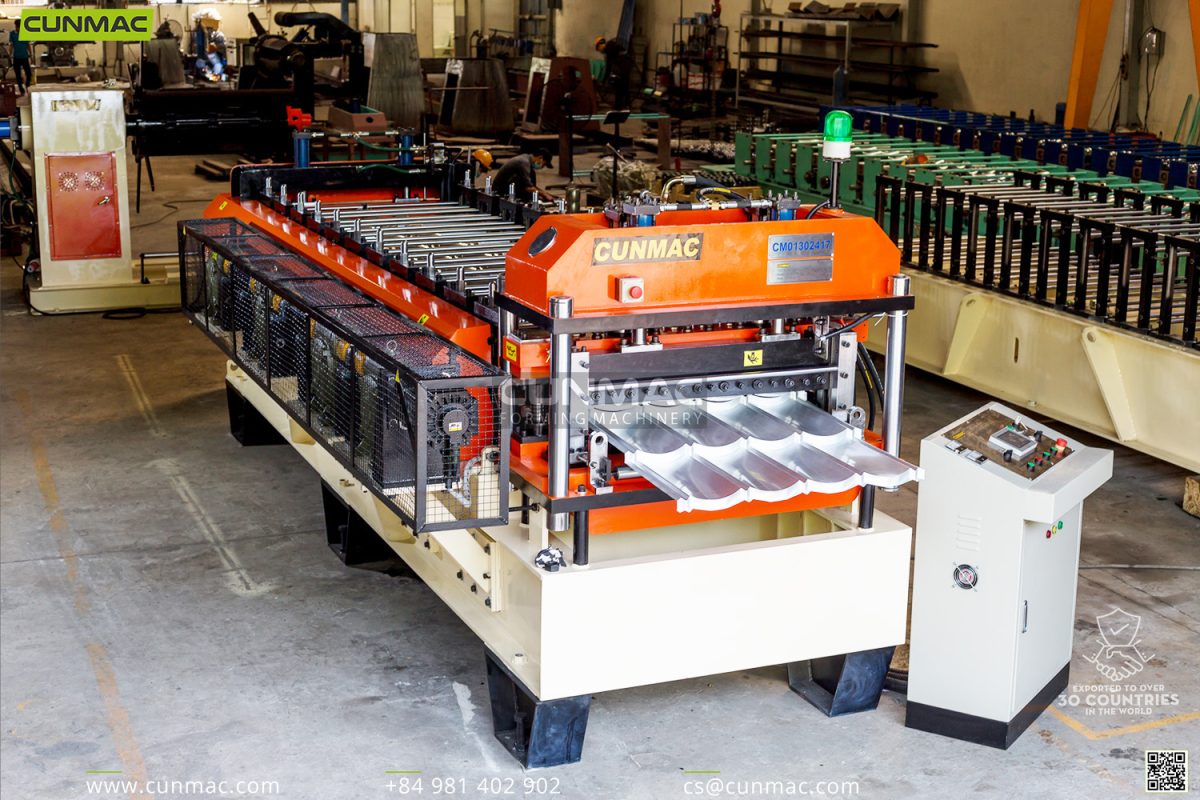

The typical configuration of the Classic tile roofing roll forming machine includes the following components:

• Decoiler/uncoiler to hold and feed metal coils
• Sheet guiding equipment to ensure precise, straight feeding into the rollers

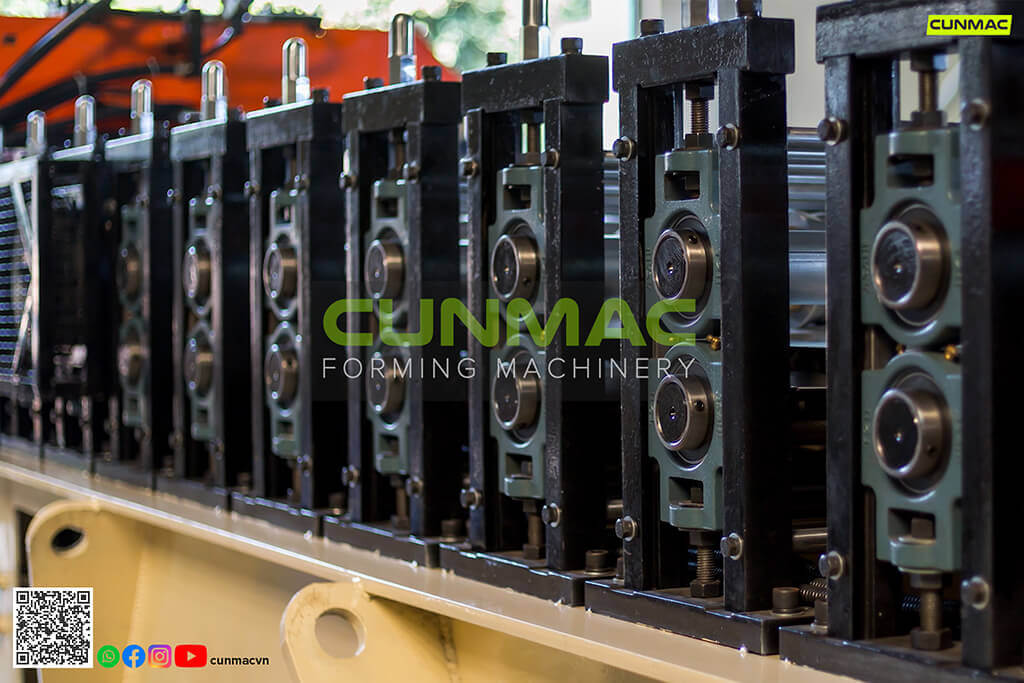

• Roll forming section: typically 12 – 20 roller stations that progressively form the metal sheet into a tile profile
• PLC control system + HMI touchscreen, allowing programmable operation for sheet length, quantity, and profile adjustments
• Hydraulic or servo driven cutting system to trim sheets to preset lengths
• Output table / stacker for finished roofing sheets

This configuration allows fully automatic operation: feeding, forming, cutting, and stacking with minimal manual intervention. The CUNMAC machines are built with robust frames, high quality rollers and cutting blades made from hardened alloy steel, ensuring stable, continuous operation for industrial scale production.

Applications of Classic Tile Roofing Sheets

The classic tile roofing roll forming machine is suitable for producing metal roofing sheets used in a wide range of construction contexts:

• Residential buildings: houses, villas, private homes seeking the aesthetic appeal of tile style roofing
• Commercial buildings, warehouses, and industrial sheds, where durable, long lasting metal roof tiles are preferred over ceramic or concrete
• Large scale roofing sheet manufacturing facilities, benefiting from high throughput and consistent quality
• Architectural projects requiring multiple tile profiles, allowing manufacturers to adapt production for regional design preferences

Since the machine can process steel, galvanized, and pre-painted metal coils, it is ideal for roof tile production lines serving both domestic and international markets.

Profiles & Flexibility

One of the strengths of the CUNMAC Classic tile machine is its flexibility: while it specializes in “Classic tile” profile, the roll forming line can be configured to produce multiple tile profiles depending on roll set design. The machine accommodates a wide variety of metal tile profiles, using materials such as GI, GL, PPGI, PPGL or aluminum, including Classic tile, Master tile, Ruby tile, Roman tile, Nosen tile, Wood tile, Nuou tile, Aspirant tile, PVDF tile, Modern tile, Nopad tile, along with additional customized profiles upon request.

This flexibility allows manufacturers to offer a broad product range without needing entirely separate machines for each profile type, they can simply change the roll set (mold) according to demand.
