Mini slitting machine

 Total power 3.7kw
 Speed 20 – 30m/min
 Dimension (LxWxH) 2m x 1.6m x 1.2m
 Weight of machine  1 tons
 Roller station 3-5
 Material thickness 0.5 – 1.5mm (G300-G550)
 Material width 914 – 1450mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote

cs@cunmac.com +84 981 402 902








      MACHINE VIDEO

      SPECIFICATIONS & EQUIPMENT

      – Automatic roll forming and cutting with Inverter, PLC, HMI
      – Automatic programmable length settings via the touch panel
      – Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
      – Electrical and hydraulic components made from Japan, Germany
      – Save history for orders in 30 days
      – Customize design
      – Stable operation with strong power and body frame

      SPECIFICATION
       Items ECO model STANDARD model HIGH SPEED model
       Total power 1.5 – 5.5kw
       Speed 20 – 30m/min
       Dimension (LxWxH) 2.0x(1.0-1.6)x1.2m
       Weight of machine 0.5 – 2 tons
       Slitting blade 3 – 10 sets
       Material thickness 0.15 – 2.5mm (G300-G550)
       Material width 914; 940; 1200; 1219; 1450mm
       Transmission system Gear motor
       Changing slitting blade Manual
       Control system Manual forward & backward by remote control
      EQUIPMENT
        Items Brand
       PLC (CPU) SIEMENS (Germany)
       Touch panel (HMI) Schneider (Japan)
       Electric motor HITACHI/TOSHIBA (Japan)
       Encoder, relay OMRON (Japan)
       Inverter MITSUBISHI (Japan)
       Hydraulic components YUKEN (Japan)
       Cutting blades SKD11 (Japan)
       Rollers S45C, SKD11 (Japan)
       Gear box LIMING (Taiwan)



      ABOUT CUNMAC MACHINERY

      Cunmac proudly provides Mini slitting machine in domestic and international markets including Asia, Australia, Middle East, Africa, America.

      About Cunmac Machinery

      Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:

      All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.

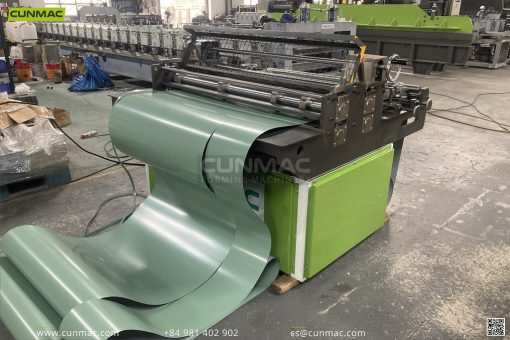

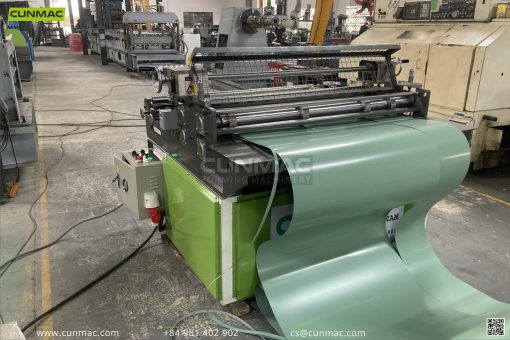

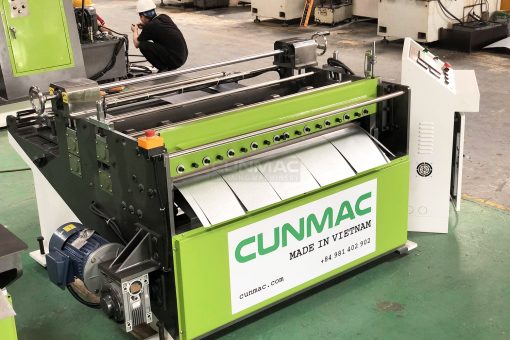

      MACHINE IMAGES
