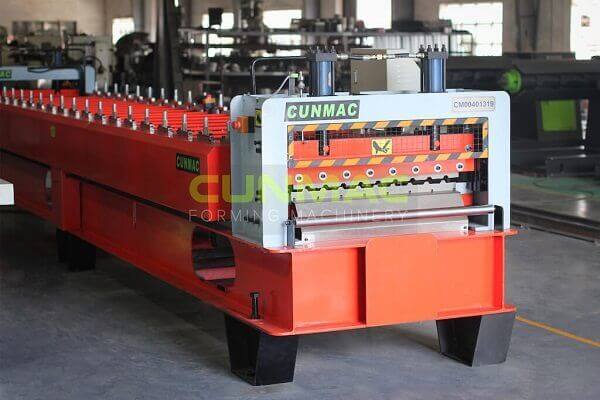

What is a Roof & Wall Cladding Roll Forming Machine?
Roof & Wall Cladding Roll Forming Machine creates metal roofing panels using for wall and roofing.
Steel banawe roof roll forming machine is fully automatic and is easy to operate with a friendly HMI panel. It consists of one decoiler, sheet guiding equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.
MACHINE VIDEO
SPECIFICATIONS & EQUIPMENT
– Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel
– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Customize design
– Stable operation with strong power and body frame
| SPECIFICATION | |||
| Items | ECO model | STANDARD model | HIGH SPEED model |
| Total power | 5.5 – 7.5kw | 7.5 – 11kw | 11 – 22kw |
| Speed | 16 – 18m/min | 22 – 24m/min | 44 – 46m/min |
| Dimension (LxWxH) | (9-11)x(1.6-2.2)x1.8m | (9-11)x(1.6-2.2)x1.8m | (9-11)x(1.6-2.2)x1.8m |
| Weight of machine | 6 – 8 tons | 7 – 10 tons | 9 – 12 tons |
| Roller station | 16 – 18 | 18 – 21 | 20 – 24 |
| Material thickness | 0.15 to 0.7mm (G300-G550) | 0.15 – 0.7mm (G300-G550) | 0.15 – 0.7mm (G300-G550) |
| Material width | 914; 1200; 1219; 1450mm | 914; 1200; 1219; 1450mm | 914; 1200; 1219; 1450mm |
| Transmission system | Hydraulic motor | Hydraulic motor | Electric motor with gear box |
| Cutting system | Hydraulic cylinder (front cutting) | Hydraulic cylinder (rear & front cutting) | Electric motor with gear box (rear & front cutting) |
| Control system | Automatic with PLC, HMI | Automatic with PLC, HMI, Inverter | Automatic with PLC, HMI, Inverter |
| EQUIPMENT | |
| Items | Brand |
| PLC (CPU) | SIEMENS (Germany) |
| Touch panel (HMI) | Schneider (Japan) |
| Electric motor | HITACHI/TOSHIBA (Japan) |
| Encoder, relay | OMRON (Japan) |
| Inverter | MITSUBISHI (Japan) |
| Hydraulic components | YUKEN (Japan) |
| Cutting blades | SKD11 (Japan) |
| Rollers | S45C, SKD11 (Japan) |
| Gear box | LIMING (Taiwan) |
ABOUT CUNMAC MACHINERY
Cunmac proudly provides Roof & Wall Cladding Roll Forming Machine in domestic and international markets including Asia, Australia, Middle East, Africa, America.
About Cunmac Machinery
Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:
- Roofing roll forming machine
- Caping_Nok roll forming machine
- Louver roll forming machine
- Pressing curve forming machine
- Floordeck roll forming machine
- Truss roll forming machine
- Channel roll forming machine
- Ceiling roll forming machine
- Slitter & cutter
- Leveling & cutting to length machine
- Bending machine
- Decoiler (uncoiler)
All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.
ABOUT CUNMAC
Our over 15 years of experience in manufacturing roll forming machines is a result of our high-quality awareness to operate in a continuously innovative process. This process is based on market needs and desires for innovation, automation, and quality.Our quality covers not only employees and suppliers but also production methods, products, and partners. All parts of products are fabricated from alloy steel by CNC precision machines. Electrical and hydraulic components derive from reputable brands such as Siemens, Schneider, OMRON, Hitachi, Yuken…
