Automatic C Stud & U Track Drywall Forming Machine

 Total power 5.5kw (3 phase, 50hz, 380v)
 Speed 16 – 18m/min
 Dimension (LxWxH) 5.0m x 1.2m x 1.6m
 Weight 2.6 – 3.3 tons
 Roller station 12 pairs – 14 pairs
 Frame I beam 200mm
 Material thickness 0.4mm – 0.6mm
 Material width 141mm – 155mm

✅ Customer service: Preventive and corrective maintenance

✅ Technical Support: 24/7 with highly skilled experts

✅ Spareparts: Genuine supplies of qualified brands

Get a quote

Metal framings include furring channel, carrying channel, studs, tracks, wall angle, and main frame channel used in concealed grid gypsum ceiling of light weight structure. Two most commonly used frames are metal U Track, used as the horizontal framework of stud partitions, in conjunction with vertical studs (C Studs).

Strong, lightweight, simple to install, and available in a variety of sizes, metal studs and channels provide for the ideal and cost-effective wall and ceiling applications when used with several layers of gypsum board. Stud Track Roll Forming Machine

Stud & Track Roll Forming Machine,

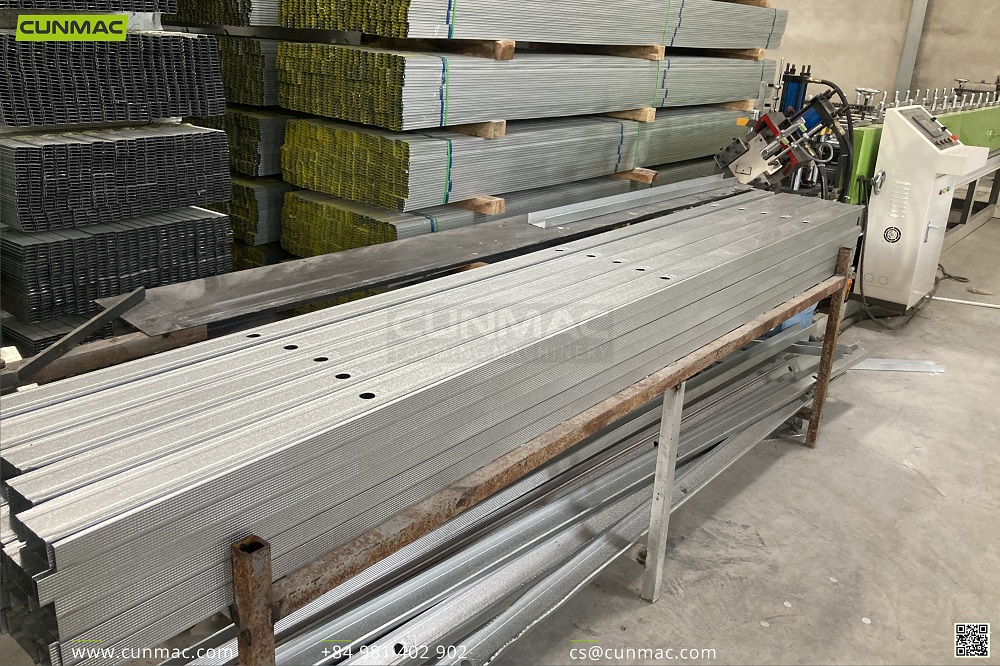

Steel stud & track wall framing system

C Stud & U Track Roll Forming Machine, 100% made by CUNMAC Vietnam, is to fully produce automatically the production of C Stud and U Track with options for punching holes and embossing customer logos. Their main advantages are stable operation with a strong body frame and beautifully customized designs.

Working flow of the machine:

A set of Drywall stud and track profile roll forming machine

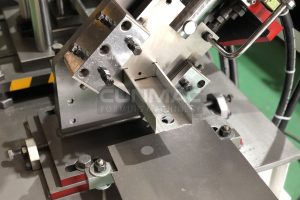

Stud making machine

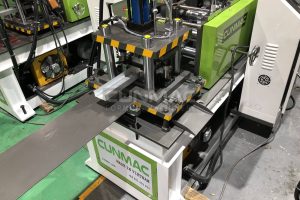

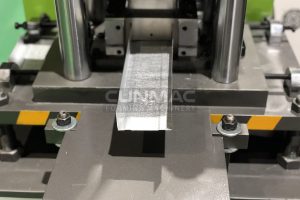

Track Roll Forming Machine

Machine video

SPECIFICATIONS & EQUIPMENT

– Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel
– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Customize design
– Stable operation with strong power and body frame

Reading more: Ceiling/drywall/furring/ C line roll forming machine

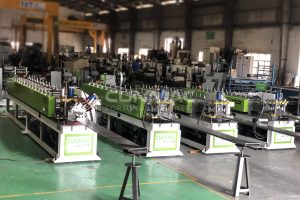

stud and track roll former
SPECIFICATION
 Items U track roll forming machine C Stud roll forming machine
Total power 5.5kw (3 phase, 50hz, 380v) 5.5kw (3 phase, 50hz, 380v)
Speed 16 – 18m/min 16 – 18m/min
Dimension (LxWxH) 5.0m x 1.2m x 1.6m 6.5m x 1.2m x 1.6m
Weight 2.6 tons 3.3 tons
Roller station 12 pairs 14 pairs
Frame I beam 200mm I beam 200mm
Material thickness 0.4mm – 0.6mm 0.4mm – 0.6mm
Material width 141mm 155mm
Transmission system Hydraulic Hydraulic

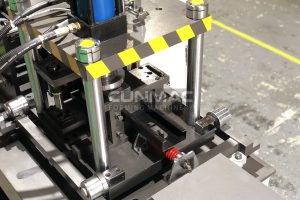

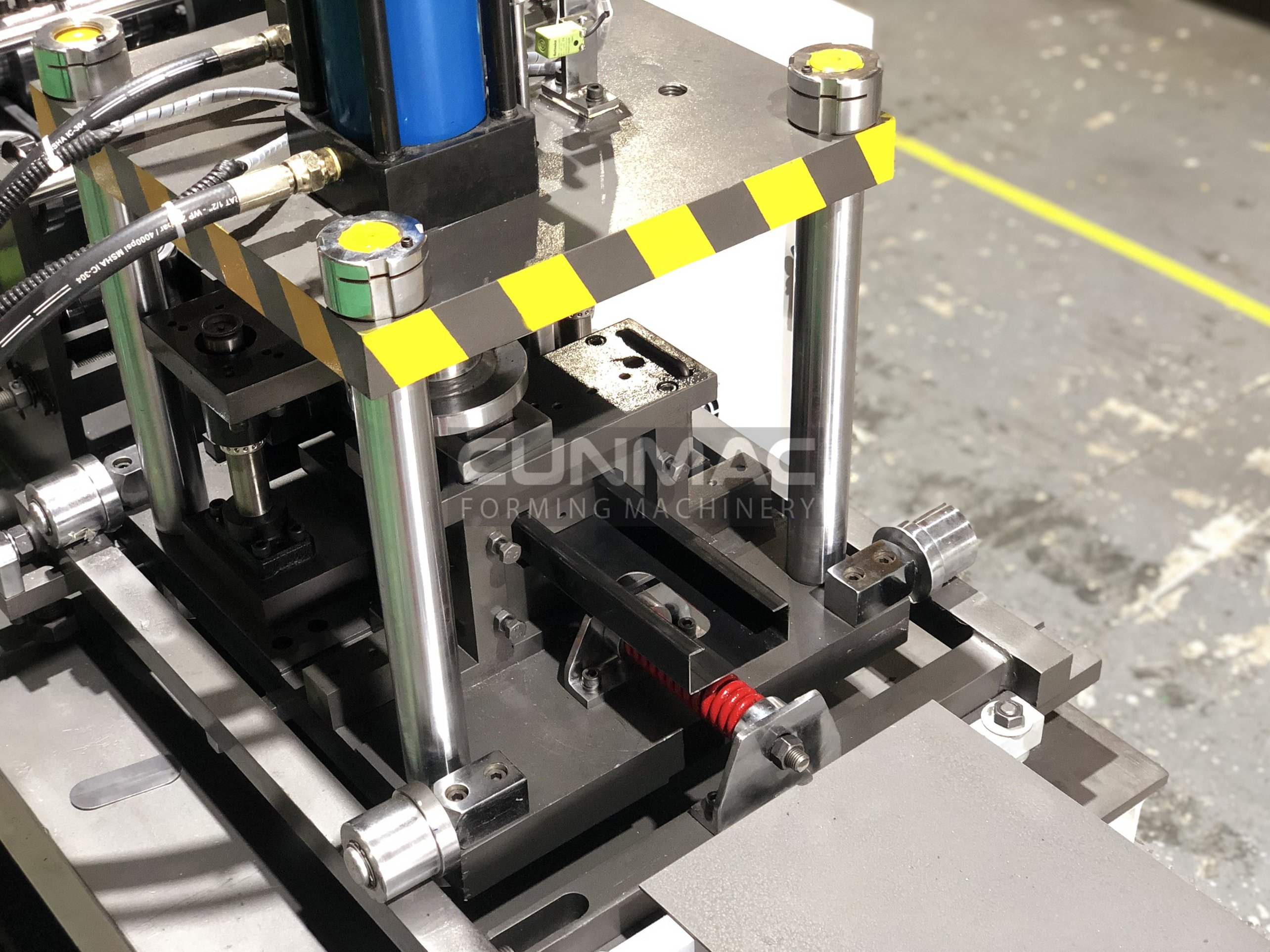

Cutting system Hydraulic cylinder (profile cutting system)

Material SKD11 Japan

Hydraulic cylinder (profile cutting system)

Material SKD11 Japan

Control system PLC, touchscreen PLC, touchscreen
Runout table Manual 4m, 100kg load Manual 4m, 100kg load

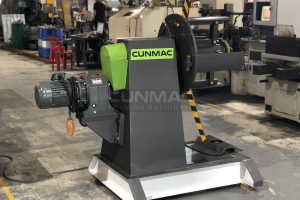

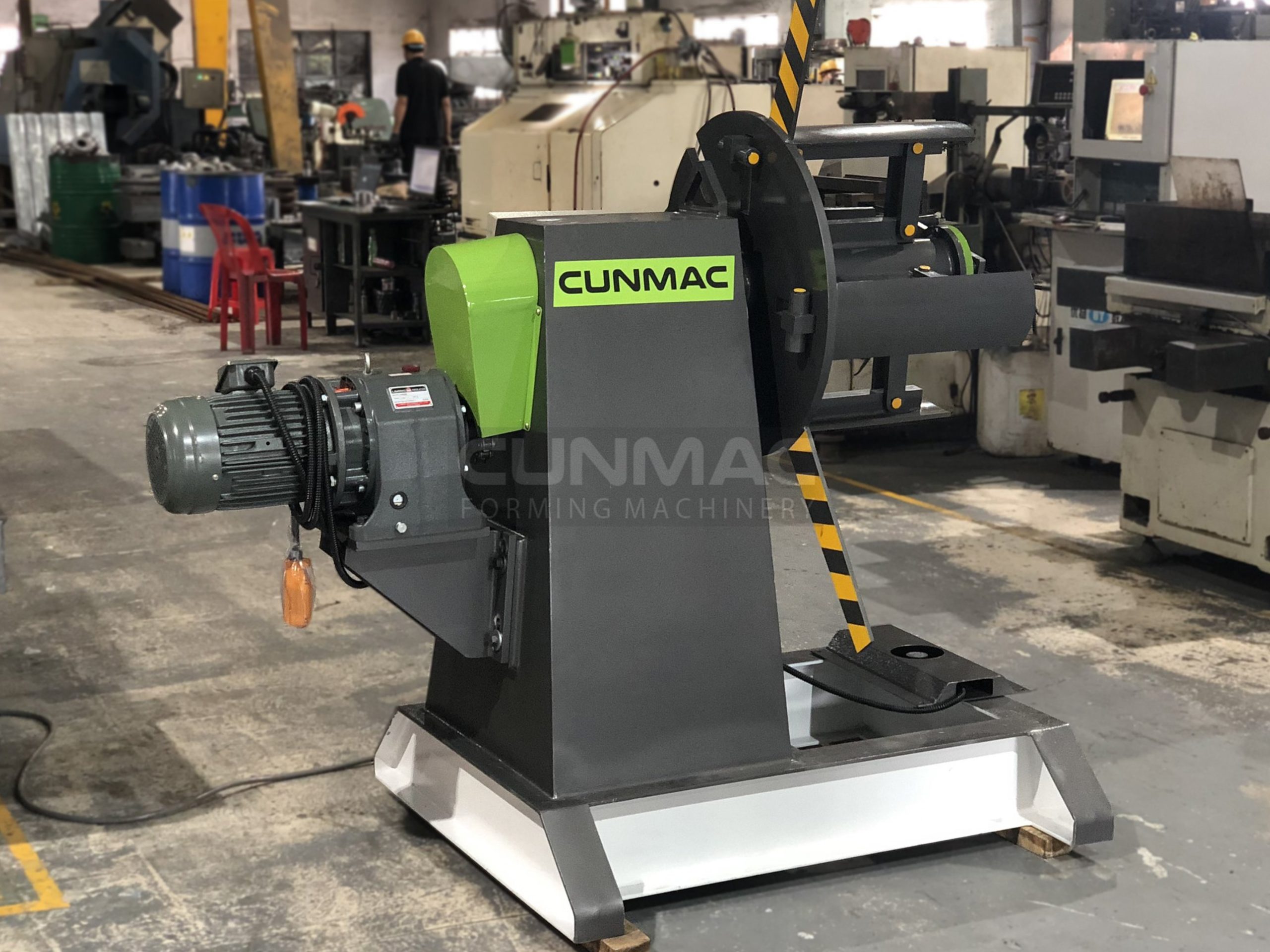

Manual uncoiler 1.5 tons 1.5 tons
EQUIPMENT
 Items Brand
 PLC (CPU) SIEMENS (Germany)
 Touch panel (HMI) Schneider (Japan)
 Electric motor HITACHI/TOSHIBA (Japan)
 Encoder, relay OMRON (Japan)
 Hydraulic components YUKEN (Japan)
 Cutting blades SKD11 (Japan)
 Rollers S45C, SKD11 (Japan)

ABOUT CUNMAC MACHINERY

Cunmac proudly provides Automatic C Stud & U Track Drywall Forming Machine in domestic and international markets including Asia, Australia, Middle East, Africa, America.

About Cunmac Machinery

Cunmac offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:

All Cunmac machines are professionally and reasonably made in Vietnam, our goal is to provide flexible machines with the best quality and customized designs which give customers unique benefits and experiences.
