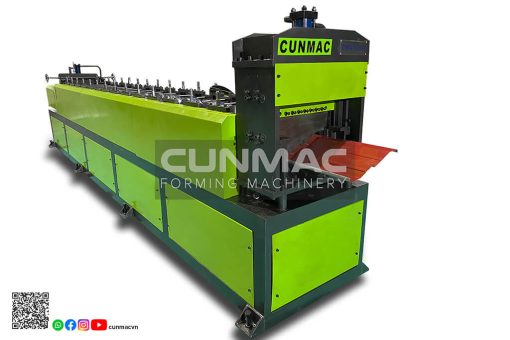

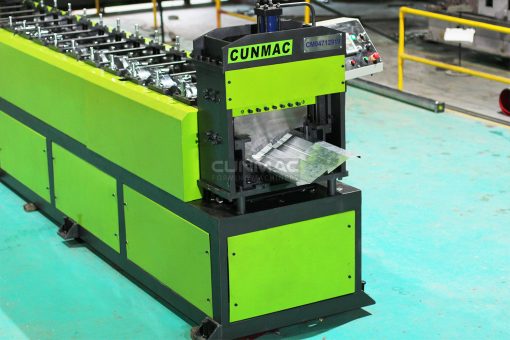

Louver roll forming machine

– Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel
– Roller and blade are fabricated from alloy and SKD11 steel 60-62HRC
– Electrical and hydraulic components made from Japan, Germany
– Save history for orders in 30 days
– Customize design
– Stable operation with strong power and body frame

SPECIFICATION
Items	ECO model	STANDARD model	HIGH SPEED model
Total power	5.5 – 7.5kw	7.5 – 11kw	11 – 22kw
Speed	16 – 18m/min	22 – 24m/min	44 – 46m/min
Dimension (LxWxH)	(9-11)x(1.6-2.2)x1.8m	(9-11)x(1.6-2.2)x1.8m	(9-11)x(1.6-2.2)x1.8m
Weight of machine	6 – 8 tons	7 – 10 tons	9 – 12 tons
Roller station	16 – 18	18 – 21	20 – 24
Material thickness	0.15 to 0.7mm (G300-G550)	0.15 – 0.7mm (G300-G550)	0.15 – 0.7mm (G300-G550)
Material width	914; 1200; 1219; 1450mm	914; 1200; 1219; 1450mm	914; 1200; 1219; 1450mm
Transmission system	Hydraulic motor	Hydraulic motor	Electric motor with gear box
Cutting system	Hydraulic cylinder (front cutting)	Hydraulic cylinder (rear & front cutting)	Electric motor with gear box (rear & front cutting)
Control system	Automatic with PLC, HMI	Automatic with PLC, HMI, Inverter	Automatic with PLC, HMI, Inverter

EQUIPMENT
Items	Brand
PLC (CPU)	SIEMENS (Germany)
Touch panel (HMI)	Schneider (Japan)
Electric motor	HITACHI/TOSHIBA (Japan)
Encoder, relay	OMRON (Japan)
Inverter	MITSUBISHI (Japan)
Hydraulic components	YUKEN (Japan)
Cutting blades	SKD11 (Japan)
Rollers	S45C, SKD11 (Japan)
Gear box	LIMING (Taiwan)

Cunmac proudly provides Louver roll forming machine in domestic and international markets including Asia, Australia, Middle East, Africa, America.
